Shunt Resistor
Position：Home » Products » Shunt Resistor

3 Watts Current Sensing Resistor MMS5515 (170A)

  • Part Number：MMS5515
  • Brand：Microhm
  • Size：5515
  • Description：0.1mΩ~0.5mΩ 3W 1% 0 ~100 ppm
  • Feature：Rating current 170A, excellent long term stability and less than 80ppm/℃, simple 4-terminal Kelvin structure...
  • Toll Free：400-803-9333

Product  Attributes

Resistance Range:

0.1mΩ~0.5mΩ

Power Rating:

3W

Tolerance:

1%

TCR:

100ppm

Size:

5515

Mounting Type:

Surface Mount/ Screw Fix

Technology:

EBW

Operating Temperature :

-55℃~+175℃

  • Details

  • Contact Us

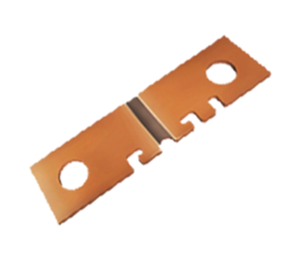

Ⅰ. Product Image

Ⅱ. Features

       Rating current 170A (0.1mohm-3W, current detecting resistors for electric equipments.)
       Excellent long term stability and less than 80ppm/℃. TCR are realized by using Ni alloy and fully fine welding structure.
       Simple 4-port Kelvin structure is easy to install large current busbar.




Ⅲ. Applications

      Current detection in precision power source, constant current source, industrial power conversion circuit
      Current detection in battery charging control, constant electronic load and etc.
